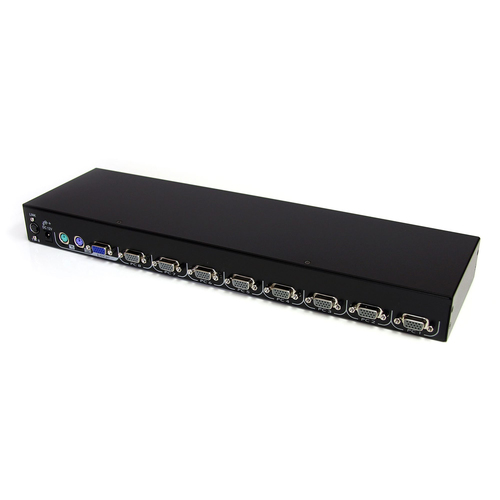

8-port KVM Module for Rack-mount LCD Consoles with additional PS/2 and VGA Console


Product Information Specifications
Technical details
Product colourBlack
Rack mountingYes
Hot-Plug supportYes
Plug and PlayYes
Scan interval3,8,15,30 s
Number of users1 user(s)
IP controlNo
Audio supportNo
CascadableYes
Sustainability certificatesRoHS
Performance
Maximum cable length30.5 m
DDC2B supportYes
Daisy chainYes
Hot-Plug supportYes
Plug and PlayYes
Maximum resolution1920 x 1440 pixels
Scan interval3,8,15,30 s
Number of users1 user(s)
Maximum analog resolution1920 x 1440 pixels
Video
Maximum resolution1920 x 1440 pixels
Maximum analog resolution1920 x 1440 pixels
Ports & interfaces
Console portsPS/2, VGA (D-Sub)
Number of computers controlled8
Keyboard port typePS/2
Mouse port typePS/2
Video port typeVGA
Audio connectionsNo
Network
Ethernet LANNo
Design
Mean time between failures (MTBF)72000 h
Maximum cable length30.5 m
Product colourBlack
Rack mountingYes
CertificationCE, FCC, UL, TAA
CascadableYes
Rack capacity1U
Housing materialSteel
Display
Built-in displayNo
Power
Input current1.8 A
Output current4 A
Power plug typeType M
Output voltage12 V
AC input voltage110-240 V
Power consumption (typical)0.6 W
Weight & dimensions
Width436 mm
Depth180 mm
Height44 mm
Weight2.2 kg
Package width57 mm
Package depth528 mm
Package height155 mm
Package weight3.29 kg
Packaging data
Package width57 mm
Package depth528 mm
Package height155 mm
Package weight3.29 kg
Packaging content
ManualYes
AC adapter includedYes
Certificates
CertificationCE, FCC, UL, TAA
Other features
IP controlNo
Audio supportNo

StarTech.com 8 Port USB PS/2 KVM Switch Modules for 1UCABCONS/17/19

POA excl. VAT
Code: CAB831HD
UNSPSC: 43211603
