Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps


Product Information Specifications
Network
Fiber optic connectorSC
Converter input interface1000Base-T
Ethernet LAN data rates1000 Mbit/s
Ethernet interface typeGigabit Ethernet
Duplex systemFull, Half
Converter output interface1000Base-LX,1000Base-SX
Auto MDI/MDI-XYes
Maximum data transfer rate2000 Mbit/s
Technical details
Wavelength1310 nm
Maximum transfer distance40000 m
Fiber mode structureSingle-mode
Plug and PlayYes
InternalNo
Sustainability certificatesRoHS
Performance
Plug and PlayYes
Wavelength1310 nm
Maximum transfer distance40000 m
Fiber mode structureSingle-mode
Mean time between failures (MTBF)65000 h
Weight & dimensions
Dimensions (WxDxH)95 x 160 x 20 mm
Weight600 g
Package depth205 mm
Package width140 mm
Package height91 mm
Package weight700 g
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
DC-in jackYes
Design
Product colourBlack
CertificationCE, FCC
InternalNo
Endurance
Mean time between failures (MTBF)65000 h
Power
Output voltage12 V
Output current1 A
Power consumption (typical)4 W
External power adapterYes
Management features
Plug and PlayYes
Colour
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Packaging data
Package depth205 mm
Package width140 mm
Package height91 mm
Package weight700 g
Packaging content
ManualYes
Certificates
CertificationCE, FCC
Other features
Full duplexYes
Dimensions (WxDxH)95 x 160 x 20 mm

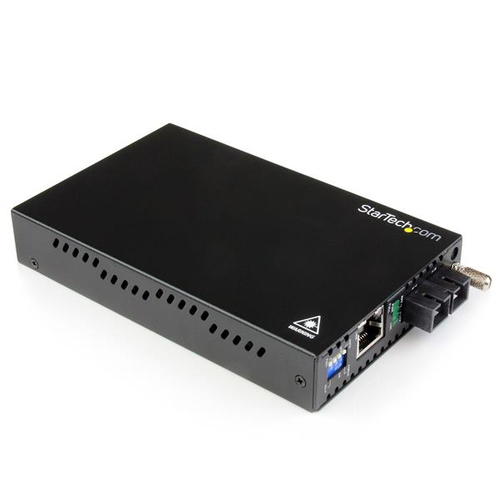

StarTech.com Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps

POA excl. VAT
Code: ET91000SM402
UNSPSC: 43201553
