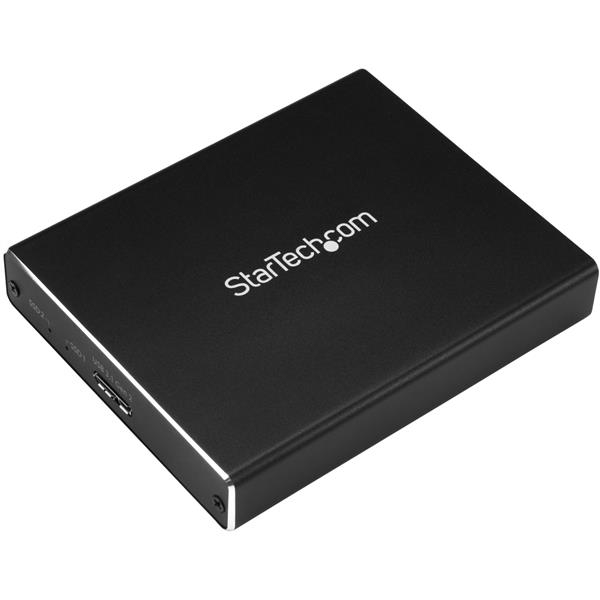

USB 3.1 SSD Enclosure – 10 Gbps – Aluminum – External Hard Drive Enclosure – M.2 to SATA – Raid Drive Enclosure


Product Information Specifications
Storage
Number of storage drives supported2
Storage drive sizeM.2
Supported storage drive interfacesM.2, Serial ATA, Serial ATA II, Serial ATA III
Supported storage drive lengths80 mm
Maximum storage capacity2 TB
RAID levels0,1,BIG,JBOD
Ports & interfaces
USB version3.2 Gen 2 (3.1 Gen 2)
USB connectivityYes
USB connector typeMicro-USB B
USB connector genderFemale
USB ports quantity1
Integrated USB cableNo
Technical details
RAID levels0,1,BIG,JBOD
MaterialAluminium
LED indicatorsYes
Data transfer rate10 Gbit/s
Product colourBlack
ChipsetASMedia - ASM1352R
USB version3.2 Gen 2 (3.1 Gen 2)
Maximum storage capacity2 TB
Sustainability certificatesRoHS
Design
Product typeSSD enclosure
CertificationCE, FCC
MaterialAluminium
LED indicatorsYes
Product colourBlack
Performance
UASP supportYes
Port multiplierYes
Mean time between failures (MTBF)35000 h
Data transfer rate10 Gbit/s
ChipsetASMedia - ASM1352R
Power
Power source typeUSB
Packaging data
Package weight195 g
Package width131 mm
Package depth165 mm
Package height32 mm
Certificates
CertificationCE, FCC
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 60 °C
Operating relative humidity (H-H)0 - 90%
Weight & dimensions
Weight96 g
Width80 mm
Depth100 mm
Height15 mm
Package weight195 g
Package width131 mm
Package depth165 mm
Package height32 mm
Packaging content
Screws includedYes
ManualYes
Screwdriver includedYes
Cables includedUSB

StarTech.com Dual-Slot Drive Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) - RAID

POA excl. VAT
Code: SM22BU31C3R
UNSPSC: 43201604
