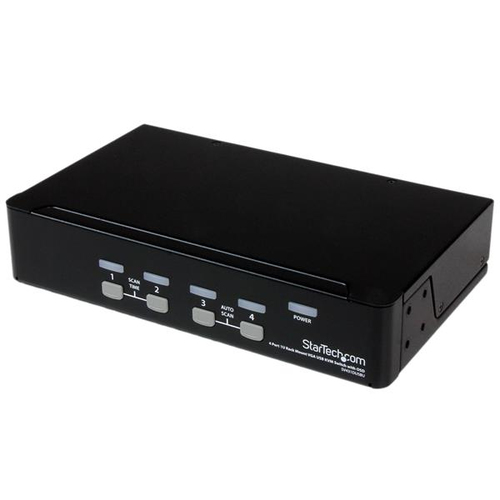

4 Port 1U Rackmount USB KVM Switch with OSD


Product Information Specifications
Technical details
Product colourBlack
Rack mountingYes
Plug and PlayYes
On Screen Display (OSD)Yes
LED indicatorsPower
Hot keysYes
IP controlNo
Audio supportNo
Sustainability certificatesRoHS
Video
Maximum resolution1920 x 1440 pixels
Maximum analog resolution1920 x 1440 pixels
Ports & interfaces
Console USB ports quantity2
Console portsUSB A,VGA (D-Sub)
Number of computers controlled4
Keyboard port typeNo
Mouse port typeNo
Video port typeVGA
Audio connectionsNo
USB 2.0 ports quantity2
VGA (D-Sub) ports quantity5
DC-in jackYes
Performance
Daisy chainYes
Plug and PlayYes
Maximum resolution1920 x 1440 pixels
Maximum analog resolution1920 x 1440 pixels
Design
Mean time between failures (MTBF)143000 h
Product colourBlack
Rack mountingYes
LED indicatorsPower
Hot keysYes
CertificationCE, FCC, TAA, REACH
Rack capacity1U
Housing materialSteel
Display
Built-in displayNo
On Screen Display (OSD)Yes
Power
Input current0.2 A
Output current0.6 A
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Output voltage9 V
AC input voltage110 - 240 V
Power consumption (typical)5.4 W
External power adapterYes
Operational conditions
Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width220 mm
Depth130 mm
Height43 mm
Weight957 g
Package width411 mm
Package depth215 mm
Package height89 mm
Package weight1.6 kg
Packaging data
Package width411 mm
Package depth215 mm
Package height89 mm
Package weight1.6 kg
Packaging content
Rubber feetYes
ManualYes
AC adapter includedYes
Certificates
CertificationCE, FCC, TAA, REACH
Other features
Hot keysYes
IP controlNo
Audio supportNo

StarTech.com 4 Port 1U Rackmount USB KVM Switch with OSD

POA excl. VAT
Code: SV431DUSBU
UNSPSC: 43211603
