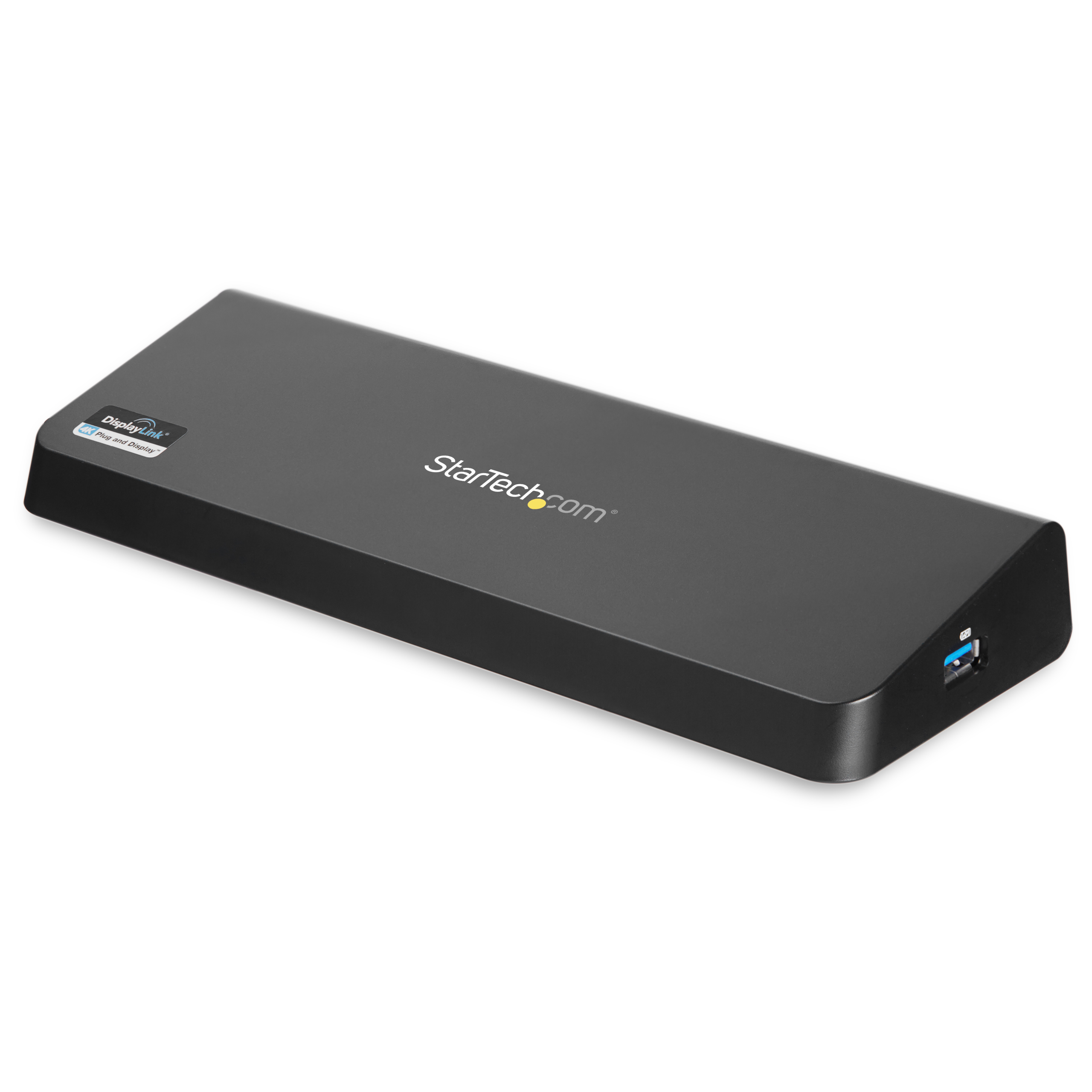

USB 3.0 Docking Station - 4K - HDMI / DisplayPort - with Fast Charge / Ethernet / Audio - Universal
Ports & interfaces |
---|
Connectivity technology | Wired | Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 | HDMI ports quantity | 1 | Headphone outputs | 1 | DisplayPorts quantity | 1 | Headphone connectivity | 3.5 mm | USB connector type | USB Type-A | Weight & dimensions |
---|
Width | 76 mm | Depth | 227 mm | Height | 24 mm | Weight | 277 g | Power |
---|
AC input voltage | 100-240 V | Input current | 1.5 A | Output voltage | 5 V | Output current | 6.5 A | Power consumption (typical) | 32.5 W | Compatible power plug types | AU,EU,UK,US | Operational conditions |
---|
Operating temperature (T-T) | 0 - 40 °C | Storage temperature (T-T) | -10 - 80 °C | Operating relative humidity (H-H) | 0 - 90% | Network |
---|
Ethernet LAN | Y | Ethernet LAN (RJ-45) ports | 1 | Ethernet LAN data rates | 10,100,1000 Mbit/s | Wake-on-LAN ready | Y | Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u | Auto MDI/MDI-X | Y | Full duplex | Y | Packaging data |
---|
Package width | 251 mm | Package depth | 198 mm | Package height | 71 mm | Package weight | 1.1 kg | Software |
---|
Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 | Mac compatibility | Y | Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave | Other operating systems supported | Chrome | Packaging content |
---|
Cables included | AC, USB | AC adapter included | Y | Manual | Y | Drivers included | Y | Other features |
---|
Cable length | 0.6 m | Chipset | DisplayLink - DL-5900, VLI - VL812 | USB data transfer rates | 5000 Mbit/s | Performance |
---|
Product colour | Black | Card reader integrated | N | Data transfer rate | 5 Gbit/s | Maximum digital resolution | 3840 x 2160 pixels | Cable lock slot | Y | LED indicators | Activity, Link | Charging function | Y | UASP support | Y | Housing material | Plastic, Steel | Brand compatibility | Any brand | Certification | CE, FCC, DisplayLink | Logistics data |
---|
Products per master (outer) case | 150 pc(s) | Master (outer) case width | 370 mm | Master (outer) case length | 415 mm | Master (outer) case height | 275 mm | Products per shipping (inner) case | 150 pc(s) | Sustainability |
---|
Sustainability certificates | RoHS |
|
"This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD?Resolutions?
This?4K USB docking station?supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration
Max DisplayPort Resolution
Max HDMI Resolution
DisplayPort
(Single Display)
3840 x 2160p (4K)
N/A
HDMI
(Single Display)
N/A
2560 x 1440p
DisplayPort and HDMI
(Two Displays)
2048 x 1152p
2048 x 1152p
*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.
USB Fast Charge?
The?USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2?making it easy to charge your?tablets and other?mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use?
This?docking station with DisplayPort?and HDMI?is universally compatible, working?with virtually all?Windows®?USB 3.0 equipped laptop brands?and includes a 2ft. USB 3.0 cable for quick setup.??
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime North American based Technical Support. "
|
|
|
POA excl. VAT
Code: USB3DOCKHDPC
UNSPSC: 43211615
|
